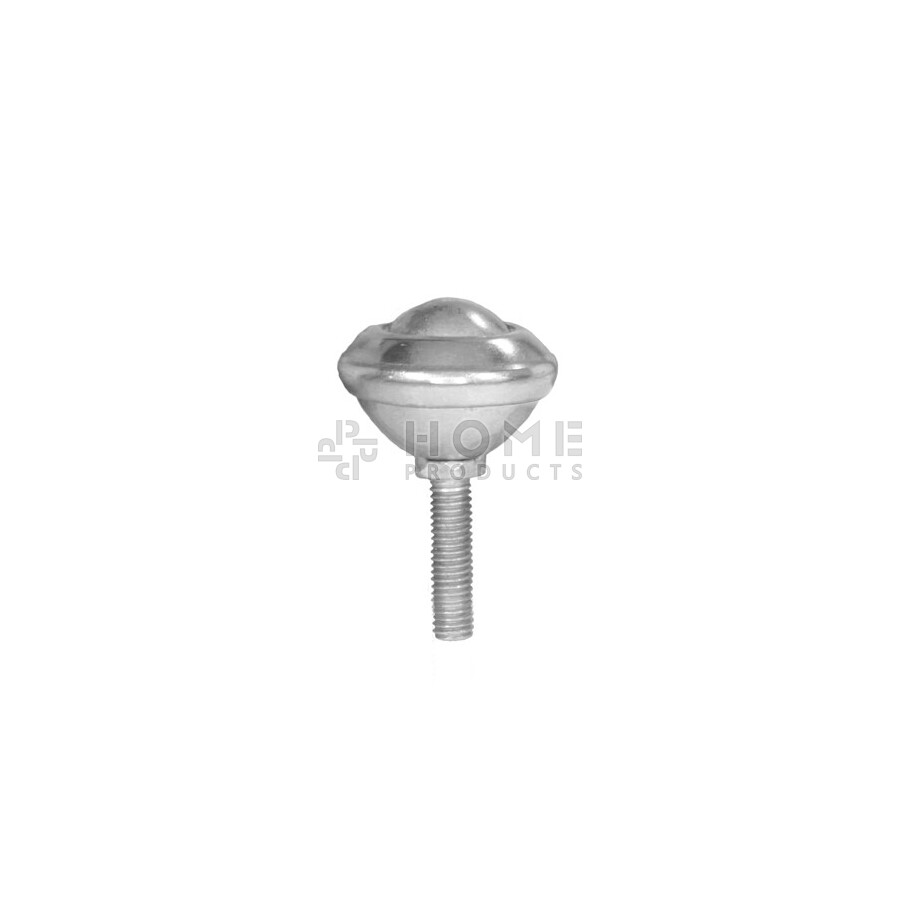

Ball Transfer Unit, 25.4 mm, with M8 threaded end

Price and availability

SKU: 80041206

Availability: In stock

€5,69

Including 21% VAT, excluding shipping costs


Amount	Price p/pc.
16	€5,49
32	€5,19
64	€4,89

Need larger numbers? Request a quote.

Description

Ball Transfer Unit with a steel 25.4 mm ball and with M8 threaded end. The maximum load is 25 kg. The maximum transport speed for a steel ball is 2 m/s [7,2 km/h].

Suitable alternative for Alwayse 1009-13-40 ball transfer unit.

Specifications


Model	Ball Transfer
Max. Load (kg)	25
Diameter (mm)	39
Total height (mm)	55
Kogeldiameter (mm)	25.4
Thread	M8
Ball material	Steel
