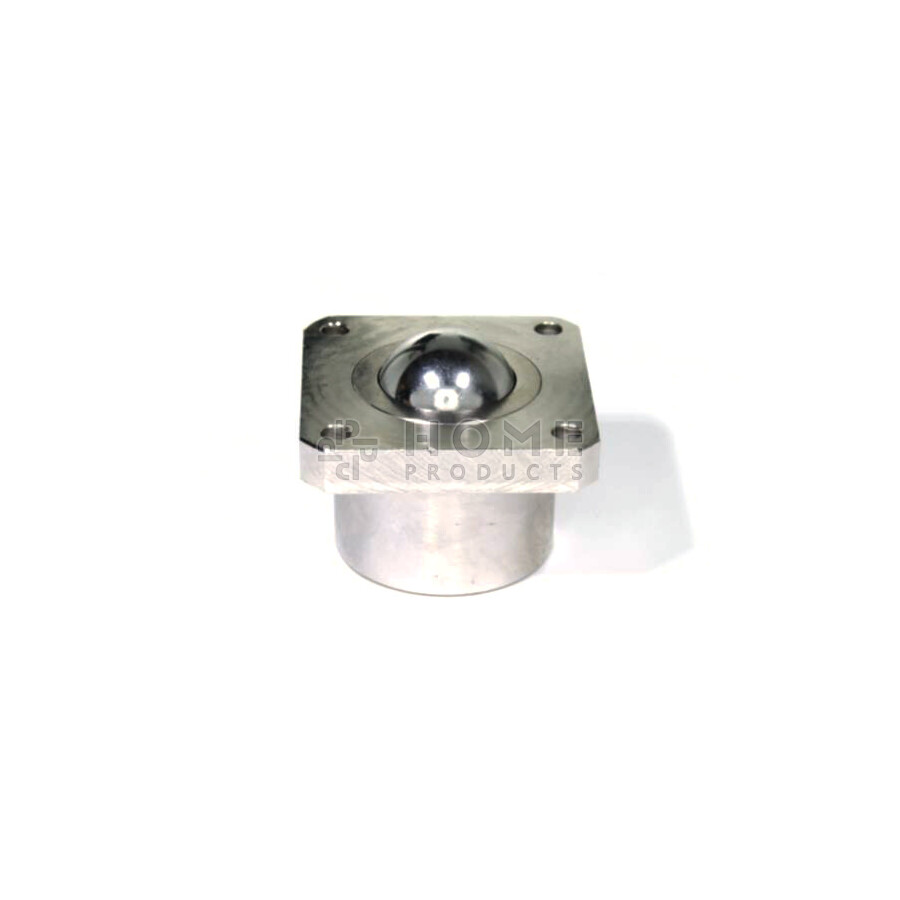

Ball Transfer Unit, 38.1 mm, with mounting holes and flange, for heavy load
Description
Ball Transfer Unit with a steel 38.1 mm ball, mounting holes and flange. The maximum load is 250 kg. The maximum transport speed for a steel ball is 2 m/s [7,2 km/h].
Specifications

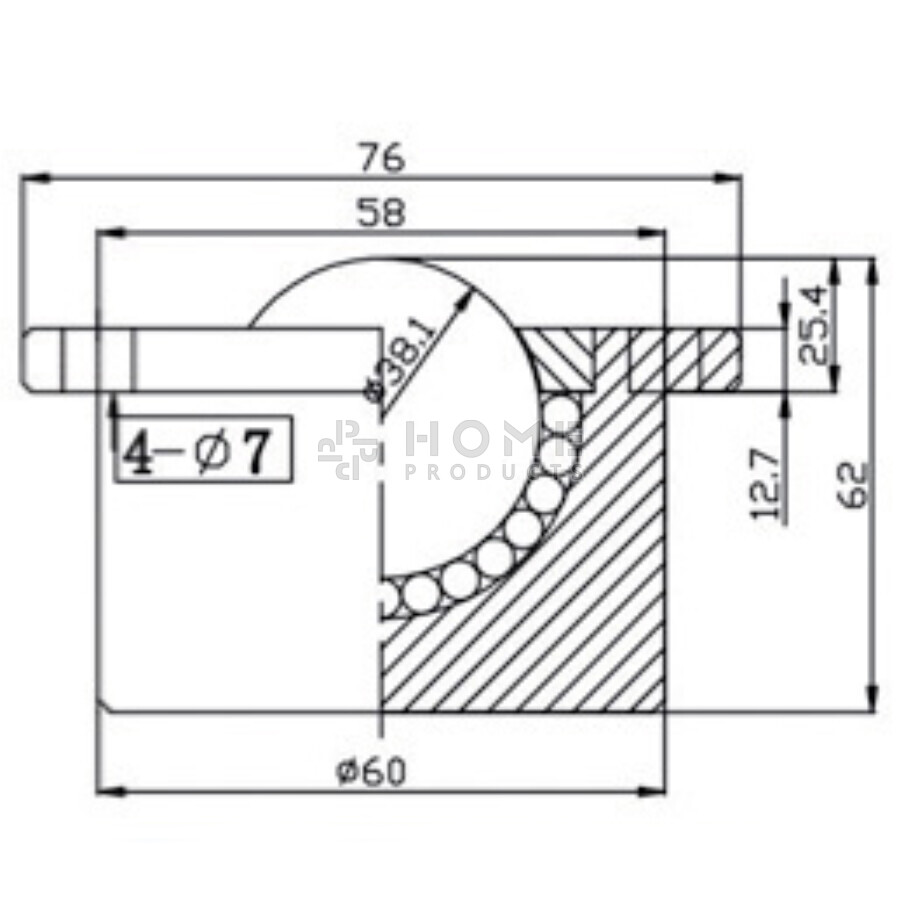

Dimensions (l x w x h) | 76 x 76 x 62 mm |
Model | Ball Transfer |
Max. Load (kg) | 250 |
Total height (mm) | 62 |
Bolt Hole diameter (mm) | 7 |
Kogeldiameter (mm) | 38.1 |
Built-in diameter (mm) | 60 |
Ball material | Steel |
Center distance mounting holes (mm) | 58 |
