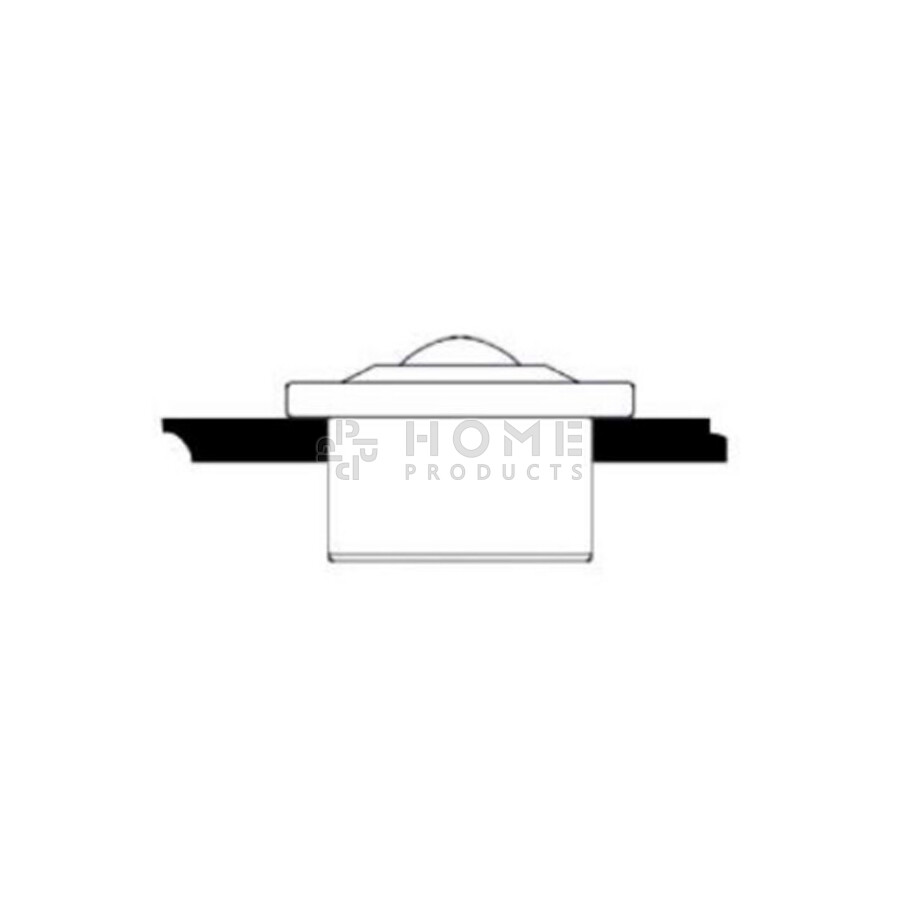

Ball Transfer Unit, 45 mm, with flange and spring, for heavy load

Price and availability

SKU: 80041285

Availability: In stock
This product will be shipped directly from our warehouse.

€83,99

Including 21% VAT, excluding shipping costs


Amount	Price p/pc.
16	€79,99
32	€75,49
64	€71,49

Need larger numbers? Request a quote.

Description

Ball Transfer Unit with a steel 45 mm ball, flange and spring. The maximum load is 280 kg. The maximum transport speed for a steel ball is 2 m/s [7,2 km/h].

The ball transfer unit has a built-in spring, whereby the ball can also move up and down.

Specifications


Dimensions (l x w x h)	86 x 86 x 101.5 mm
Model	Ball Transfer
Max. Load (kg)	280
Diameter (mm)	86
Total height (mm)	101.5
Kogeldiameter (mm)	45
Built-in diameter (mm)	66.5
Ball material	Steel
Starting pressure spring (kg)	200
